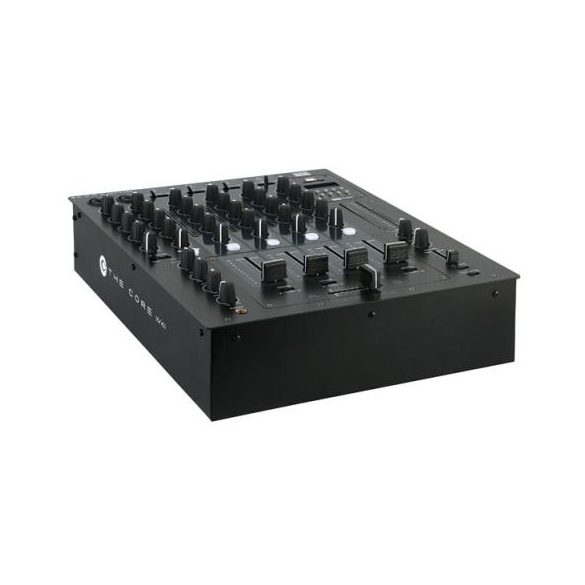

DAP-Audio CORE MIX-4 USB

The CORE MIX-4USB is a 4 channel DJ club mixer with 12 analogue inputs and 2 independent USB audio interfaces. This makes it easy to connect your laptop and route the audio of your DJ software directly through the MIX-4USB. It has an independent variable fx send for each channel which makes it possible to be creative with external effects. The return is controlled by a short fader. It has 2 microphone channels with a 3 band EQ, talk-over function and an on/off switch to make MC-ing safe and easy for party jocks & MC's. Low tone control on the headphone output makes it possible to adjust your favorite sound. All the pot meters are locked below the surface for extra stability and it has a separate fader print board for easy maintenance. It is equipped with unbalanced and balanced outputs with trim function and a MP3 player-recorder. The MP3 module can record and playback your life performance directly on an USB or SD device.

Specifications

Inputs channels: 2 x Microphone, combo XLR/Jack
8 x Line, RCA
2 x Phono, RCA
2 x USB, Type B
1 x Return RCA

Output channels: 1 x Record, RCA
1 x Booth, RCA
1 x Master unbalanced, RCA
1 x Master balanced, XLR
1 x Headphones, TRS 6.3mm Jack
2 x USB, Type B
1 x Send, RCA

USB Port: Audio in- & output interface for PC & Mac, 48 KHz, 16 bit
Channel EQ range: -26dB / +12dB
Microphone EQ range: -12dB / +12dB
Frequency response: 20Hz -20Khz
T.H.D: <0.1%
MP3 Module: 128Kbit 44.1 Khz, Max 16GB
Dimensions: 310 x 380 x 88 (WxDxH)
Power supply: 100-240V AC, 50/60Hz
Power consumption: 13 Watt
Weight: 5Kg
